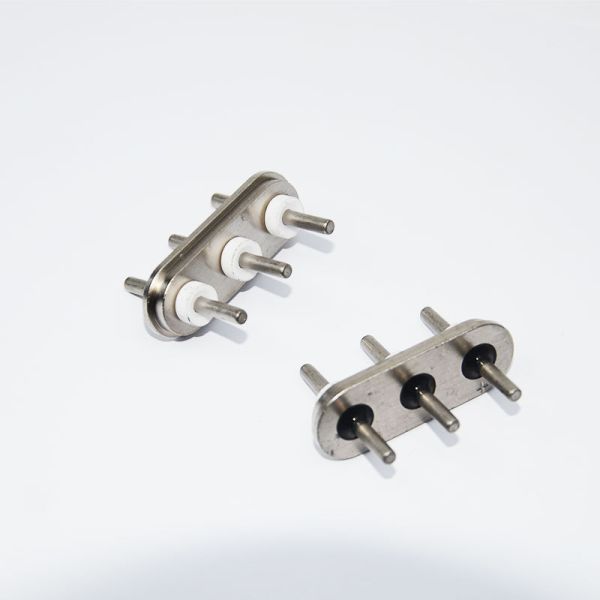

Product Description:
We provide a variety of sintered seal terminals, which are made to meet customer requirements. These terminals have excellent performance, and the following parameters are mainly worth mentioning:
- Material: 45 Steel
- Hi-pot: with a 3000v leak current of ≤ 0.5MA
- IR: 1000V and IR>1000MΩ
- Leak Test: withstand 4MPa N2 pressure with no leak
- Burst Test: withstand 5MPa with no leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Hermetic EV Connector
- Voltage Rating: 12V-540V
- Connector Type: Hermetic
- Connector Series: EV
- Insulator Material: Glass And Ceramic
- Manufacturer: SSCore
- Special Feature: Hermetic Automobile Port, Hermetic Vehicle Port, Hermetic Vehicle Port Connector
Technical Parameters:
Our company's products are all processed through a environmentally friendly electroless nickel plating method with an average coating thickness of 3-5 microns. This method does not contain any mercury, lead, cadmium, hexavalent chromium, and other harmful substances and can reach European standards with the SGS environmental testing report. The electroless nickel plating can make for better electrical connections.
Applications:
The sintered seal terminal is mainly used in automotive air conditioning compressors with a voltage range of 72V to 810V. It serves as an electrical connection that ensures sealing, insulating, and voltage and pressure resistance between the compressor and the power system of the vehicle.
Customization:
Hermetic EV Connector
Brand Name: SSCore
Place of Origin: ShenZheng, China
Certification: IATF16949
Minimum Order Quantity: 5 pcs
Price: 10 - 40 $
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Connector Series: EV
Mounting Type: Panel Mount
Product Name: Hermetic EV Connector
Voltage Rating: 12V-540V
Manufacturer: SSCore
SSCore Hermetic EV Connector is specifically designed for Automobile and Electric Vehicle applications. It is certified with IATF16949 and meets the highest standards of quality and safety. Its voltage rating is from 12V to 540V and it is a panel mount type connector. With a minimum order quantity of 5 pieces, we can offer you the most competitive prices and fast delivery time. Our production capacity is up to 50w pieces per month.
Support and Services:
Hermetic EV Connector provides technical support and service for our products.
We provide technical service to our customers, including troubleshooting, software maintenance, and product installation. We also offer customer support and training for our products.
Our technical support team is available 24/7 for any inquiries or questions. We provide comprehensive support, from installation to ongoing maintenance and support. We also offer a wide range of services such as system upgrades, hardware and software updates, and more.
Our customer service team is dedicated to providing fast and efficient answers to any questions or concerns you may have. We are here to help you get the most out of your Hermetic EV Connector product and ensure your satisfaction.
